AC90V P3.91 Outdoor LED Advertising Board VGA Synchronous

Name: AC90V P391 Outdoor LED Advertising Board VGA Synchronous
Brand: JuCaiYuan
Price: 1 USD

Buy cheap AC90V P3.91 Outdoor LED Advertising Board VGA Synchronous product

Brand Name : JuCaiYuan

Model Number : P3.91 P4.81 P2.976

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P3.91 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Overview

Quick Details

Application:: indoor, indoor stage &event

Color:: full colour, Full-color

Panel Size:: 500*500mm

Pixel Pitch:: 3.91mm

Place of Origin:: Guangdong, China

Model Number:: P3.91

Brand Name:: jucaiyuan

Function:: SDK

Display Function:: Video

Pixels:: 3.91mm

Screen Dimension:: Customized Size

Certificate:: CE ROHS

Warranty:: 2 Years

Brightness:: 1200cd/sqm

LED chip:: 1921

Cabinet size:: 500*500 &1000*500mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 50X50X7.5 cm

Single gross weight:: 8.000 kg

Package Type:

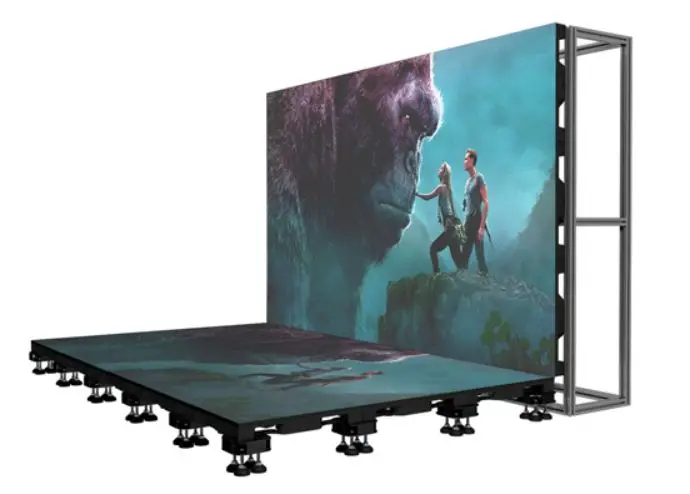

 2021 New design led display dance floor indoor outdoor p3.91 led floor display screen

Picture Example:

Lead Time:

Quantity(Sets)	1 - 10	>10
Est. Time(days)	7	To be negotiated

Product Description

AC90V P3.91 Outdoor LED Advertising Board VGA Synchronous

Specification

Item				Specifications
Modle				p3.91
Module size				250*250mm
Module resolution				64*64 dots
Cabinet size				500*500mm
Cabinet resolution				128*128 dots
Cabinet weight				8kg
Colour grayscale				32 bit
Gray scale per colour				4096-65535
Refresh rate				3840 HZ
Driving type				1/16Scan
Signal transmission distance				Cats cable: <100m single mode fiber: < 10km
Brightness				>1200nits
Optimal horizontal viewing angle				180°
Optimal vertical viewing angle				180°
AC input voltage				AC90-240 V
AC input frequency				50/60 HZ
AC input power typical value				250w/sqm
Storage temperature				From -25C° to 65C°
Work temperature				From -20C° to 50C°
IP rating				IP42 front/rear
Storage humidity				10%-90% non -condensation RH
Working humidity				10%-90% non -condensation RH
Video Signal Source				Cable TV, DVD, VCD, PC, rgbhv, YUV, YC, composite, video
Playback Mode				An alternate or arbitrary combination of video, animation, text information, etc
Image Regulation				White Balance/contrast/visual correction/backlight regulation/single module tuning brightness
Image Switching				VGA synchronous with the frame
Blind spot rate				<0.0001 (like a meta-failure rate/discrete state)
Signal processing capability				Not less than 10 bit
Lifetime Typical value				100,000 Hr

Production Application

Rental led screen is widely used in advertising leasing, video conference, product release,stage background, wedding celebration and so on , it use die-casting aluminum, hoisting, stowage,back frame fixed installation requirements. ,it has high refresh and gray-scale ,high contrast ,high quality fine picture.

00:00

00:15

Packing & Delivery

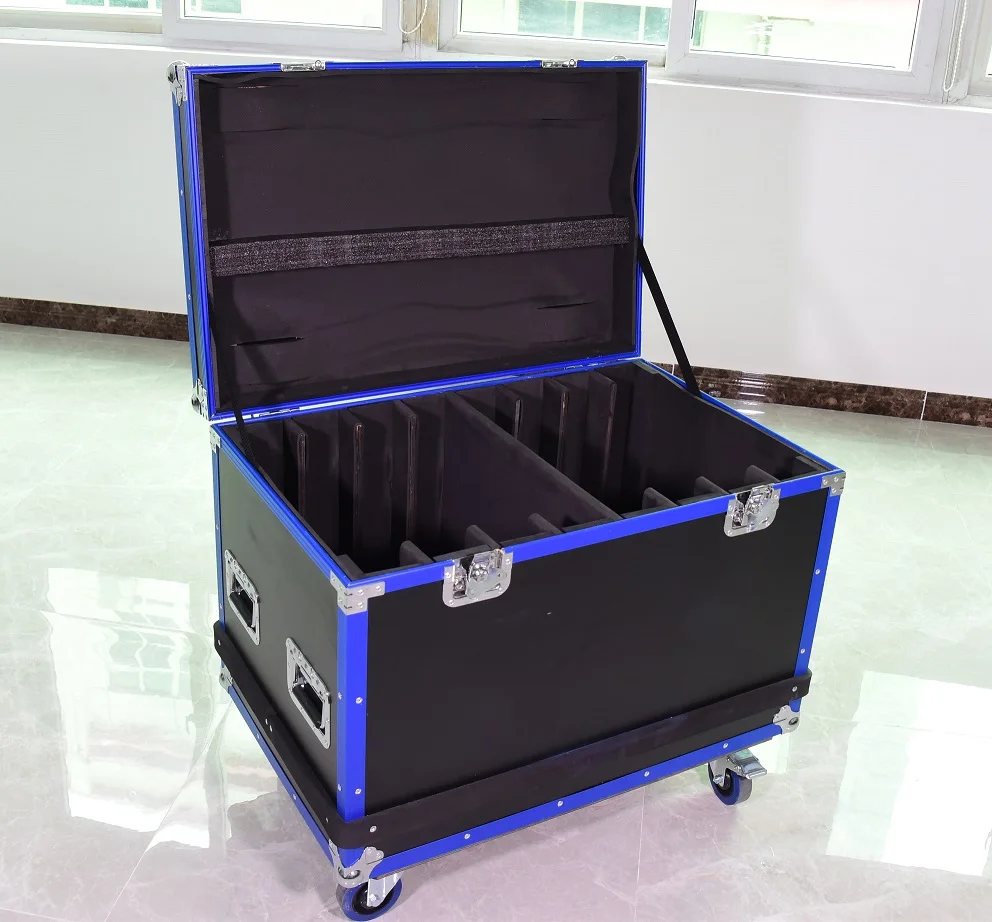

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.The flight case we have several color can choose , black , red , yellow .Flight case size 89*59*74 cm , 8 pieces cabinets in one flight case , one flight case 30 kg.
